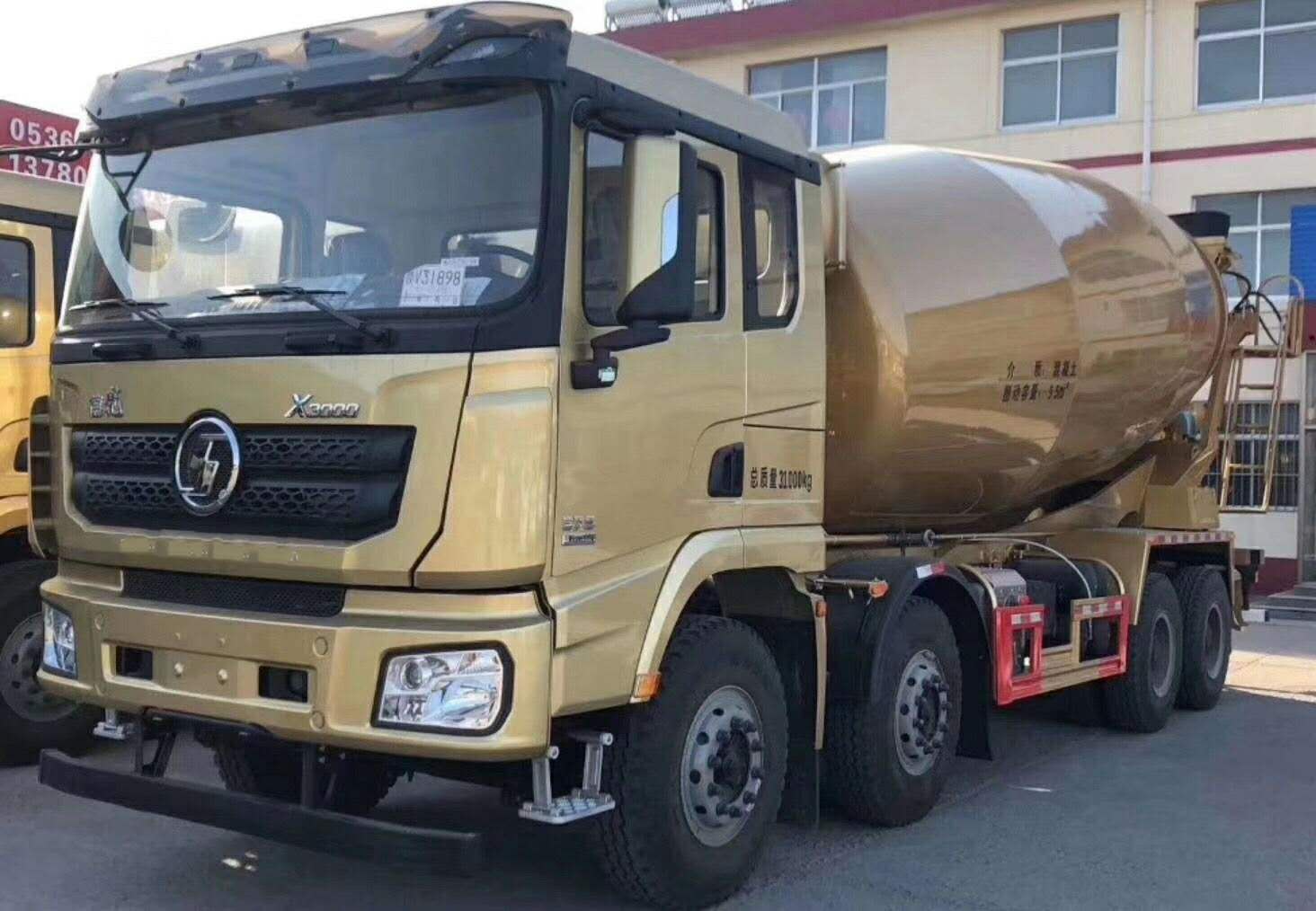

SHACMAN X3000 8x4 Mixer Truck 380HP Gold
Detailed Product Description
Model:SX5315GJB6T306
Drive type:8x4
Weight: Gross Vehicle Weight≤60
Engine Brand: WEICHAI
Engine Model:WP10.380E22+PTO
Engine Power/(kw/HP): 280 kw /380 Hp
Gear box Brand: FAST
Gear box Model:10JSD180
Concrete Mixer Truck Parameters
| Model | SX5315GJB6T306 |
| Drive type | 8x4 |
| Weight | Gross Vehicle Weight | ≤60 |
| Dimensions | Wheelbase/(mm) | 1800+2975+1400 |
| Performance | Maximum speed/(km/h) | 50～65/90 |
| Ground clearance | >314 |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22+PTO |
| Power/(kw/HP) | 280 kw / 380Hp |
| Maximum torque / (N.M)/rpm | 1600 N·M |
| Displacement/(L) | 9.726 L |
| Emission standard | Euro II |
| Gear box | Brand | FAST |
| Model | 10JSD180 |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake |
| Park brake | Rear wheel spring brake |
| Auxiliary brake | WEVB engine exhaust brake |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) |
| Suspension | Front | Multi-layer plate spring 4 main plates + 4 U-shaped bolts |
| Rear | Multi-layer plate spring 4 main plates + 4 U-shaped bolts |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery |
| Cab | Type | SHACMAN X3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, X3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English lo |
Overview
- Configuration: The truck features an 8x4 configuration, meaning it has eight wheels with four of them being powered wheels. This configuration provides enhanced traction and stability, making it suitable for challenging terrains and heavy loads.
- Engine: The X3000 Mixer Truck is equipped with a high-performance engine that produces 380 horsepower, delivering ample power for efficient mixing and transportation of concrete. The engine is designed to meet the demands of heavy-duty applications.
- Mixer Drum: The truck is fitted with a large-capacity mixer drum located at the rear. The drum is specifically designed for concrete mixing and has the capability to transport and discharge the mixed concrete at construction sites. It ensures efficient and consistent mixing of the concrete ingredients.
Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
