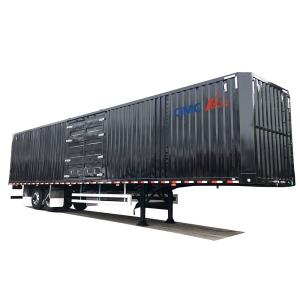

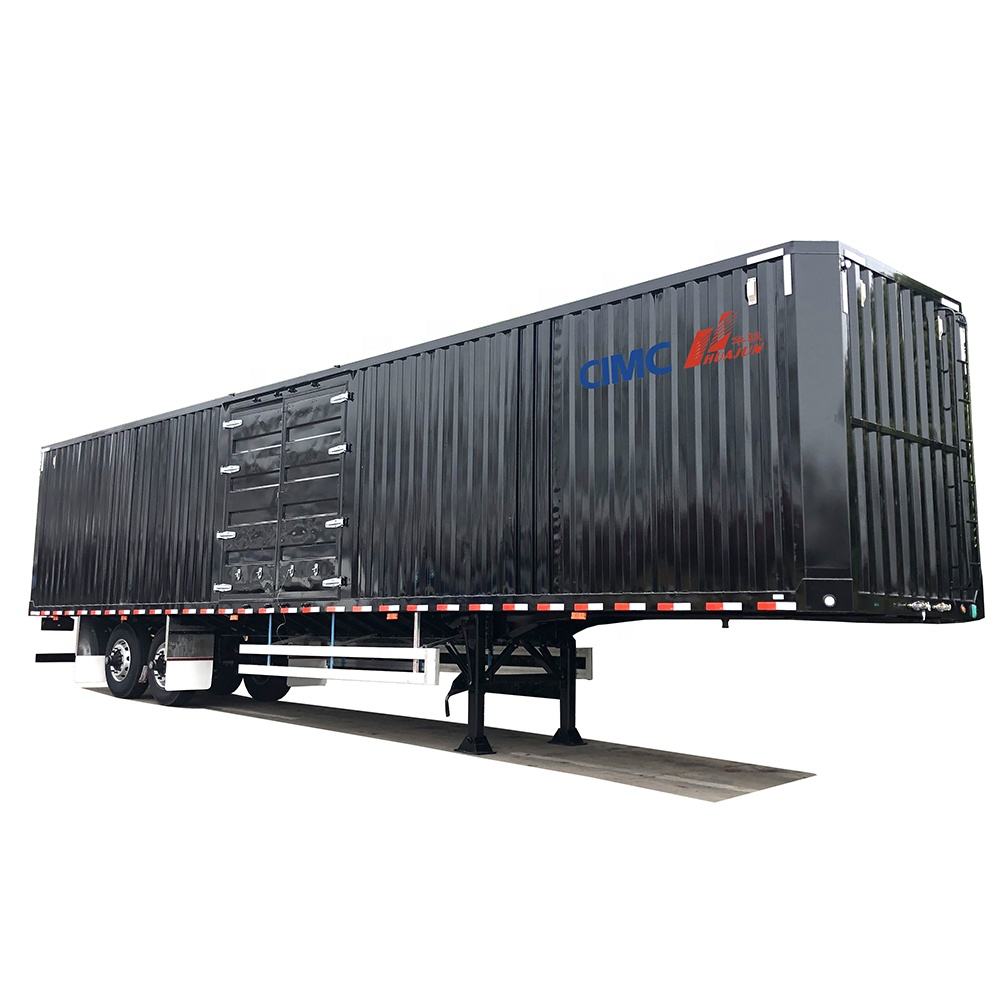

3 Axle Van Type Semi Trailer
Product Description
| Item | Specification |
| Product name | Van type semi trailer |
| Size | 13750mm*2550mm*4000mm |
| Body Sheet | Side wall thickness: 8mm Body material: wear-resistant steel. |
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes. |
| Axle | Tri-axle |
| Tire | 11.00R20 |
| Rim | 8.5-20 |
| Suspension | 3 axles CIMC reinforced type |
| Lead spring | CIMC reinforced type, 12 pieces and 16mm thickness. |
| Braking system | 2-line air braking system with air tank, WABCO emergency relay valve, braking chambers, and mechanical slack adjusters. |
| Electrical system | 24V, LED lights. 7-pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standards, rear front and side reflectors. |
| Shot blasting | The chassis is completely shot-blasted to SA 2.5 grade, and painted with a first layer of international Zinc Epoxy primer(30 Microns DEF), the second layer of international high-built polyurethane undercoat (40 microns DFT), THIRD AND FORTH LAYERS of INTERNATIONAL alkyd FINISH TOP coat. total 80-100 microns. high-quality painting. the whole trailer waxed. |
| Landing gear | JOST |
| Chamber | Double type |
| King pin | 2"(50mm)or3.5"(90mm) |
| Spare tire carrier | CIMC standard |
| Toolbox | CIMC standard |
vantage
The van-type transport semi-trailer adopts closed side protection design, which effectively reduces the lateral risk when the vehicle is travelling at high speed and cuts down the energy consumption, and the rear protection is designed with reasonable trolley attachments, which is convenient for operation. The van-type transport semi-trailer has strong bearing capacity, high safety coefficient, reasonable design, strong and durable, advanced technology manufacturing.
Pics
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions and set up offices in many countries to make after-sales service more timely and easy.
In addition, we built the KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in African areas and provides technical and operational guidance
Our main markets
With more than 60 years of unremitting efforts to make “SHACMAN” a well-known brand all over the world, products sold very well in China and also exported to more than 40 countries and regions, such as Southeast Asia, Africa, the Middle East, South America, etc.
With annual output of 50000 units of trailer, top 500 in the Chinese mechanical industry, and top 100 in the Chinese automobile industry, witness our great strength.
