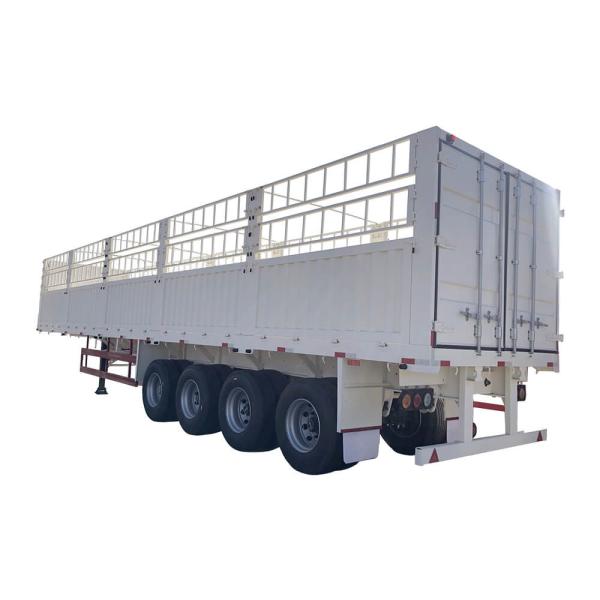

Transport Heavy Equipment 4Axles Fence Semi 60 Ton 13 Ton Transport Trailer Truck High Side Board Trailer Steel Ce
Company Introduction
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, owns 22 production bases over the world, producing capacity for all kinds of special vehicles and trailers is more than 0.2 million, which comes to the world leadership position.
CIMC HUAJUN covers an area of 0.8 million square meters, total assets of RMB 1.6 million, and about 2000 employees. The main products are semi-trailers, dump trucks, tank trailers, box trailers, refrigerator trucks or trailers, special purpose vehicles, etc. annual production capacity of more than 50,000.00 units.
Product Description
| Item | Specification |
| Size | 13000*2550*3850mm. |
| Body Sheet | Floor thickness: 3mm, checkered plate; Body material: Q355 steel. |
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes. |
| Axle | 13T FUWA brand axle |
| Tire | 12R22.5 |
| Rim | 9.0-22.5 |
| Suspension | 3 axles CIMC HUAJUN reinforced type. |
| Lead spring | CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness. |
| Braking system | 2-line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters. |
| Electrical system | 24V, LED lights. 7-pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standards, rear front and side reflectors. |
| Shot blasting | The chassis is completely shot blasted to SA 2.5 grade and painted with the first layer of international Zinc Epoxy primer(30 Microns DEF), the second layer of international high-built polyurethane undercoat (40 microns DFT), THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat. total 80-100 microns. high-quality painting. the whole trailer waxed. |
| Landing gear | 28T, two-side operation. |
| Chamber | Double type |
| King pin | (2') 50# or (3.5') 90# |
| Spare tire carrier | CIMC HUAJUN standard |
| Tool box | CIMC HUAJUN standard |
| Color | According to customers' requirements and RAL color code. |
Our Customers
Our factory was established in 1952, and with more than 60 years of experience in the trailer manufacturing industry, we make “CIMC HUAJUN” the leading brand in the world through years of unremitting efforts.
By now, our trailers were shipped to more than 60 countries and areas. Such as The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr. Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory for more than 15 years.
Pic
Our Main Markets
With more than 60 years of unremitting efforts to make “HUAJUN” a well-known brand all over the world, products sold very well in China and also exported to more than 40 countries and regions, such as Southeast Asia, Africa, the Middle East, South America, etc.
With annual output of 50000 units of trailer, top 500 in the Chinese mechanical industry, and top 100 in the Chinese automobile industry, witness our great strength.
Our Supplier
Packing&Shipping
CIMC Group HUAJUN Vehicle 3 Axles Fence Cargo Semi Trailer 60 80 tons with Container Twist Lock
1. One unit was shipped separately or two/three units were packed together.
2. Naked or waxed both are acceptable.
the Carton Fair Exhibition
from 2007 to 2019 we went to the exhibition twice one year, maybe you are familiar with these faces.
Factory History
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. The main products are semi-trailers, dump trucks, tank trailers, box trailers, refrigerator trucks or trailers, special purpose vehicles, etc. annual production capacity of more than 65,000.00 units.
Product Tags:
|
|
4Axles High Fence Semi Trailer 60 Ton 13 Ton Semi Transport Trailer Truck Ce Images
|
